Parameter \ Model | Electric tilting & manual rotation |

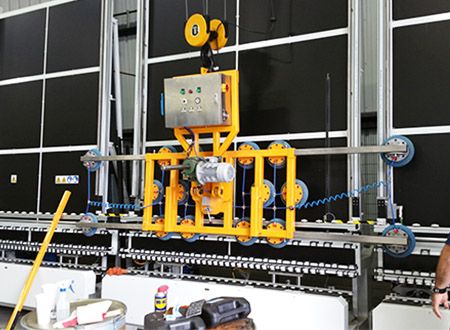

Function | Mainly suitable for outdoor large glass installation, indoor large plate moving etc. It has tilting and rotation functions. |
Operation voltage | DV48V / AC380V (optional) |
Battery Life | 15 - 20 hours |
Operating weight | 800 - 1300kg |
Rotation | Manual rotation 360° |
Turn over | Electric 90° |
Operation method | Manual / remote control |
Feature | Vacuum pump |
Vacuum system | - Voltmeter, protection against power failure up to 15 minutes. - Barometer, low air pressure alarm function. |
Air supply | Electric vacuum pump compressed air 6-8 Pa |
Suction cup No. | 8,10,12 (customized) |
Lifting method | Externally hang on the lifting tool / crane |
|
|
|
|
